JUELL™ 3D-3 Product Features & Technical Specifications
JUELL™ 3D Compatibility Software & Scanners:
Don't see your software or scanner listed above? Contact our offices and a trained customer service specialist will assist you with our growing list of compatible software and scanners.
Diverse Applications
JUELL™ 3D-3 allows you to produce models for orthodontic aligners and surgical guides for a fraction of what it would cost to outsource.
3D Printing in a FLASH
- JUELL™ 3D-3 is one of the fastest 3D printers on the market today. Print orthodontic models for complete clear aligner treatment in less than 18 minutes without compromising resolution or accuracy
- Builds at speeds as fast as 4.5 seconds per layer
- Unbelievable accuracy achieved by using enhanced UV/DLP/LED technology and JUELL™ 3D Flash OC software to project an HD image with 1920 X 1080p resolution
- Print from an intra-oral or tabletop scanner using .STL, .OBJ, .3ds or .AMF files
- Print jobs are scalable. Build one quadrant or 18 arches and the layer build time remains the same
Innovation that Sets a Standard
- Includes JUELL™ 3D Flash OC software and hardware
- Accuracy and resolutions achievable only by current high-end printers
- Builds to a maximum height of 100mm and offers the flexibility to build 50/100micron
Deliver Same Day

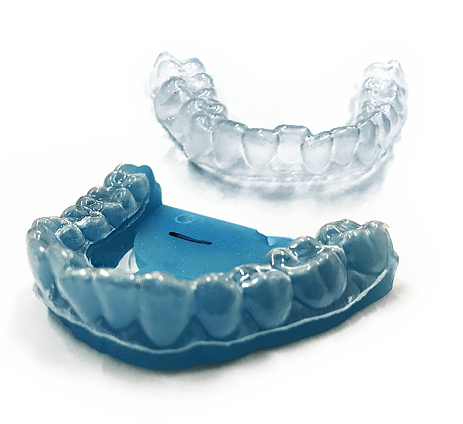

- Orthodontic models for aligners
- Surgical guides
- Trays
- Casts
- Nightguards
- Indirect bonding tray
Technical Specifications
- Technology: UV / DLP / LED
- Net Build Volume (xyz):1 92 mm X 108 mm X 230 mm - 7.25" X 4.25" X 9"
- Maximum Build Height: 100 mm (3.93")
- Native Resolution (xy): 1920 px X 1080 px
- Layer Resolution (xy): 50/100 μm - 25 μm (microns) coming soon
- Layer Thickness (z): up to 51 mm / hr
- Vertical Build SPeed: Down to 5 μm (microns)
- Build Plate: Oxygen Permeable Membrane Alloy
- Material: JUELL™ 3D Volo Proprietary
- Software: JUELL™ 3D Flash OC - Windows based OS
- File Input: .STO / .OBJ / .3ds / .AMF
- Electrical Requirements: 100 - 200 v 50/60 Hz
- Footprint: 16" X 20" X 28"
- Warranty: Limited One Year
